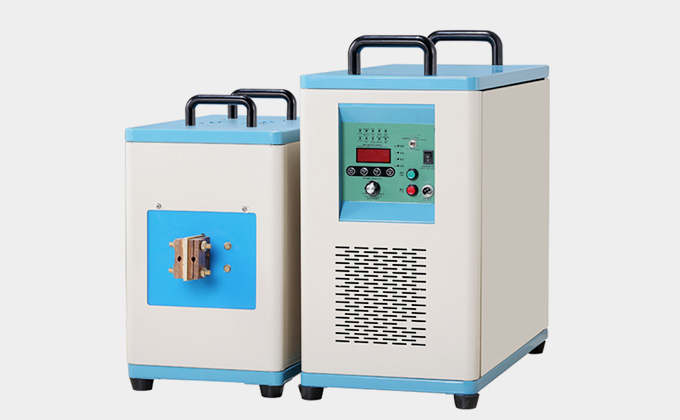

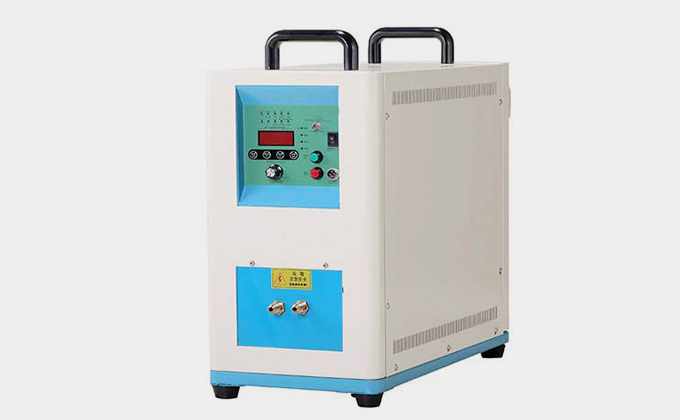

UHF induction heating power supply

Frequency Automatic Tracking

ROCHO ultra-high frequency induction heating power supply adopts all-solid-state IGBT inverter control technology, frequency automatic tracking and matching. Even if the working load conditions change, the device will perform continuous real-time output matching and automatic tracking to always meet the set power. The unit provides the max efficiency in the entire heating cycle, ensuring stable and reliable operation.

Precise Brazing Effect

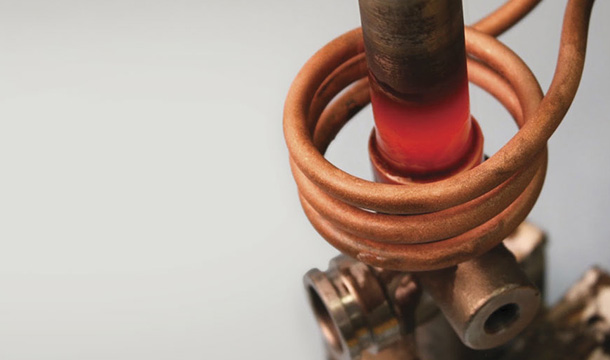

The welding current can be accurately controlled by this ultra-high frequency induction heating power supply. It can accurately locate the welding position, the minimum diameter of welding parts is 0.1mm. After the solder is melted, the heat preservation of the welding can be maintained, so that the solder can fully fill the welding seam, ensure the good welding quality. Different induction heating coils can be customized according to different shapes of metal work pieces.

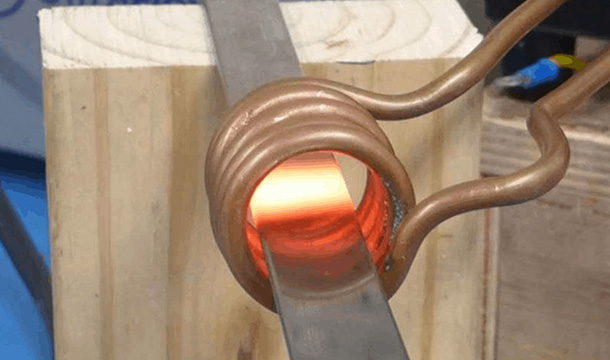

According to the different specification of work piece, our engineers will design the suitable induction coil to attain optimal welding effect.

All-Round Protection Function

Ultra high frequency induction heating power supply has multiple protection functions including over-current protection, water shortage protection, over-heat protection, over-voltage protection, short-circuit protection, phase failure/loss protection and other alarm functions. It will automatically alarm in case of faults, greatly improving the reliability of the equipment.

The ultra-high frequency induction heating power supply has two operating modes: constant current and constant power. These two mode can be choose according to the heating state of the workpiece, so as to optimize the heating process, achieve rapid heating, and maximize the performance of the equipment.

The ultra-high frequency induction heating power supply has five key parameter, including heating power, thermal power, heating time, thermal time, and cooling time. These parameter can be adjusted independently, so the high frequency machine is suitable for occasions where the heating temperature is controlled more accurately.

The ultra-high frequency induction heating power supply can be equipped with infrared thermometer to realize automatic temperature control and improve heating quality along with temperature control accuracy. It also can be equipped with PLC control system to coordinate with the flow process of the automatic production line.

The ultra-high frequency induction heating power supply adopts microcomputer software intelligent control system, each process has more than 20 programmable temperatures and time periods, ensure the high control accuracy and stable operation of the equipment.

Reliable Design And Strict Testing

Each induction heating power supply has been strictly tested for high power operation in the ROCHO INDUCTION factory, aging and eliminating unstable components, to ensure that each unit has the ability to continuously running for several months.

Applications:

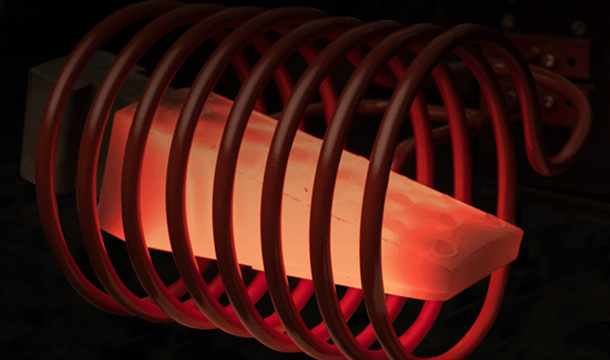

Ultra-high frequency induction heating power supply are the idea for industrial welding processes, heating output power, accurate welding positions, and small annealing range are required together with wide matching frequency and low operation cost. It is widely used in heat treatment industry, such as:
1. Welding: copper - brass welding, tungsten steel - stainless steel;
2. Brazing of glasses, jewellery, watches and clocksetc;
3. Welding of carbide saw blades;
4. Soldering of electrode silver;
5. Shrink fitting of motor rotor;
6. Annealing of wires and thin metal strips;
7. Welding of knives;
8. Hardening of paper knives.

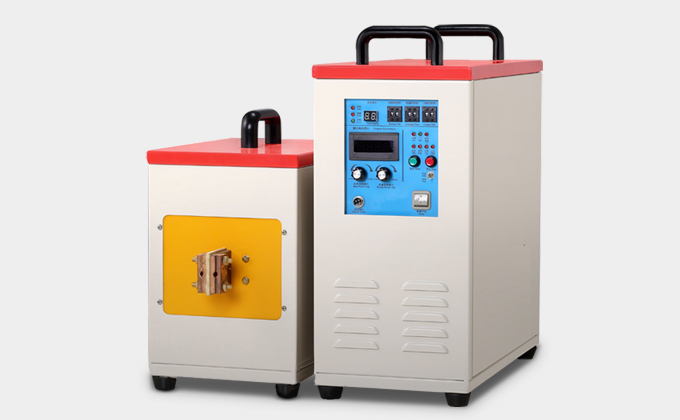

Technical Specification:

Model	Output	Frequency	Output Current	Weight	Dimensions(LWH)
UHF-3	3kW	200-500kHz	3-12A	20KG	430100120mm 230100120mm
UHF-6	6kW	200-500kHz	3-12A	23KG	580250500mm 230100120mm
UHF-10	10kW	200-700kHz	5-30A	18/3.5KG	520250500mm 150100150mm
UHF-20	20kW	50-200kHz	5-45A	28/3.5KG	550250450mm 400250380mm
UHF-30	30kW	50-200kHz	7-70A	29/24KG	550250450mm 400250380mm
UHF-40	40kW	50-200kHz	10-95A	50/27KG	650250500mm 500350450mm
UHF-60	60kW	30-150kHz	12-145A	50/27KG	750400880mm 500300450mm
Power supply	Single-Phase, 220V Or Three-Phase, 380 V 50Hz/60Hz
Voltage Range	180V-250V, 340V-480V
Output module	IGBT
Time Setting	1-99 seconds
Protection function	Over voltage, over current, short circuit, water shortage, phase loss, water temperature alarm, etc.
Water temperature	The device alarms when the water temperature exceeds 40 °C.
Cooling way	Air chiller, water chiller, closed circuit cooling system (Available).
Upgraded	PLC control, infrared thermometer, (Available)
Application	Melting, forging, brazing, hardening, shrink fitting, pipe heating
Suitable material	Stainless steel, copper, aluminum, silicon and other non - magnetic materials
Warranty	One year technical support and service

ROCHO technical team can customize the induction heating power supply for special purposes according to customer requirements, and design capacitors, frequencies and induction coils according to the metal workpiece to be heated and heating requirements to achieve the best heating effect.
When you need to consult or order machine, please provide the following information:
(1) the local industrial voltage;
(2) the name and material of the product to be processed;
(3) the required process: heating, brazing, hardening, melting or annealing;
(4) the size of the product to be processed, such as diameter and length and if drawings can be provided.
