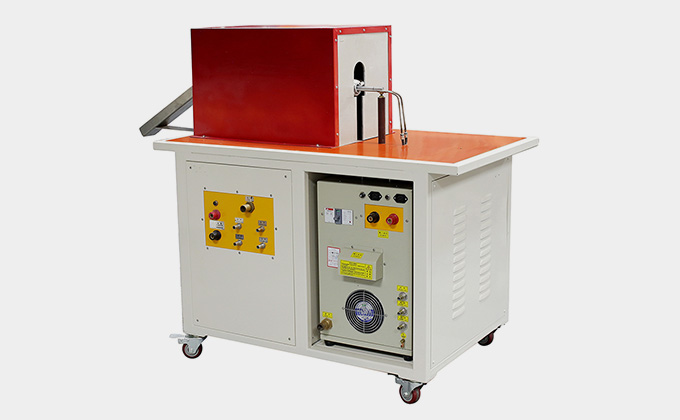

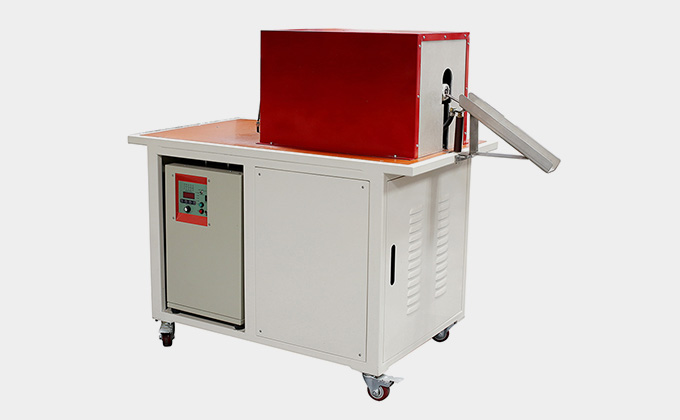

Brass Copper Alloy Billet Forging System

Brass Alloy Forging Process

ROCHO INDUCTION brass and copper alloy billet heating forging system adopts all solid-state IGBT frequency conversion control technology, IGBT drive circuit provide the quick heating speed to reduce oxidation and deformation of the copper blank, to provide more stable and better heating uniformity.

The Principle Of Induction Forging

ROCHO induction forging system adopts the principle of medium-frequency electromagnetic induction heating. After the induction coil is energized, a magnetic field is generated, and magnetic lines of force cut metal bars such as steel bars, copper bars, iron bars, aluminum bars, etc., thus generating induced current, namely, eddy current, inside the bars.

The heat of induction heating generates induction current inside the bar, so the metal material is heated evenly and the temperature difference between the core and the surface is extremely small. The induced current enables the metal bar to be rapidly and evenly heated by reaching the required temperature in a very short heating time; so the surface of the heated bar is less oxidized with less workpiece deformation.

All-Round Protection Function

The brass and copper alloy billet heating forging system adopt medium frequency induction heating power supply, which has multiple protection functions including over-current protection, water shortage protection, over-heat protection, over-voltage protection, short-circuit protection, phase failure/loss protection and other alarm functions. It will automatically alarm in case of faults, greatly improving the reliability of the equipment.

High Product Quality
The medium-frequency induction heating forging furnace can reach the required temperature in a very short time, significantly reducing the oxidation of metals; PLC automatic control system can adjust the operating power, frequency and other parameters, with high temperature control accuracy, small oxidation and burning loss, and ensure product quality.

PLC Automatic Control System
The medium frequency induction heating forging furnace can be equipped with a PLC automatic control system to realize automatic feeding, automatic blanking, automatic completion of heating process, reducing labor costs, and high production efficiency. The application of temperature control system can realize accurate control of temperature and improve product quality and qualified rate.

Continues Forging Process

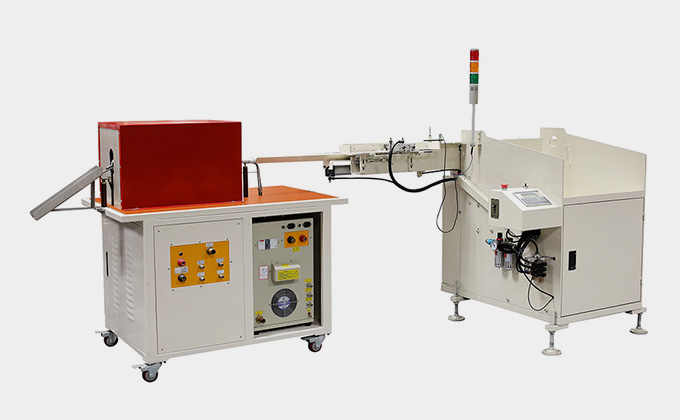

With the pneumatic feeding method adopted can realize the adjustment of the power of the equipment and the feeding speed for bars with different lengths and diameters so that the machine can continuously or intermittently automatically push out the heated bars to ensure the continuity of the following forging process, realize automatic production and greatly improve production efficiency.

Save Material Cost
Compared with the traditional heating methods such as oil heating and coal heating, induction heating possesses fast heating speed, can continuously carry out forging tasks, does not waste heating blanks caused by power or equipment failure, and saves the cost of materials and forging dies.

Eco-Friendly Equipment

As the heating method can provide uniform heating and the temperature difference between the core and the surface is extremely small, it is low in heat radiation and dust pollution, and meets the requirements of environmental protection during operation.

It does not cause line-side pollution or heat-generating of the power supply transformer and compensation capacitor of the substation, or interfere the operation of other equipment, and can reduce the capacity of the power supply transformer. It can be equipped with automatic feeder to significantly improve production efficiency and reduce labor costs.

Applications:

ROCHO INDUCTION specialized in designing and manufacturing the complete set of induction heating forging systems, including induction heating power supplies, standard billet heaters, bar end heaters, billet heaters, as well as bar material conveying system and water cooling system. Our products expertise in the forging industry include:
Induction iron bar heating
Induction flat plate heating
Induction bar end heating
Induction pipe ends heating
Induction steel billet heating
Induction aluminum alloy bar heating
Induction brass copper alloy billet heating

Technical Specification:

Power output	25-250kW
Power output	1-20kHz
Bar Diameters	10-200mm
Applications	Heating iron rods, steel rods, aluminum rods, steel billets, brass billets.
System	PLC system, automatic feeding and unloading
Operating mode	Constant power, constant current
Display	Heating time, holding time and cooling time
Duty cycle	100%
Protection function	Over voltage, over current, short circuit, water shortage, phase loss, water temperature alarm, etc.
Structure	Power supply, capacitor, automatic feeder, induction coil, infrared thermometer
Cooling way	Water cooling
Water temperature	The device alarms when the water temperature exceeds 40 °C.
Cooling way	Closed circuit cooling system, air chiller, water chiller (Available)
Warranty	One year technical support and service

ROCHO technical team can customize the induction heating power supply for special purposes according to customer requirements, and design capacitors, frequencies and induction coils according to the metal workpiece to be heated and heating requirements to achieve the best heating effect.
When you need to consult or order machine, please provide the following information:
(1) the local industrial voltage;
(2) the name and material of the product to be processed;
(3) the required process: heating, brazing, hardening, melting or annealing;
(4) the size of the product to be processed, such as diameter and length and if drawings can be provided.
