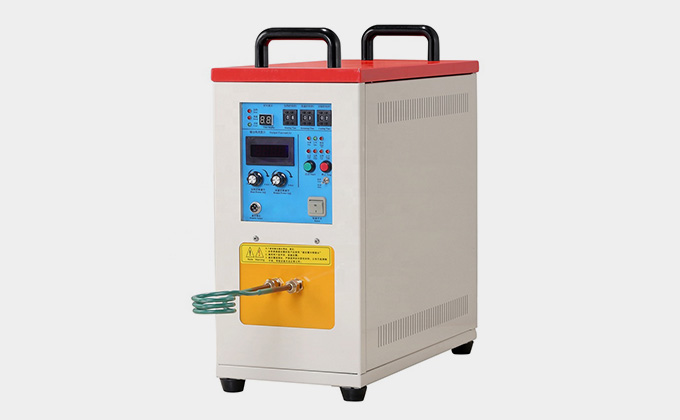

High Frequency Brazing Machine

All Solid-State IGBT Drive Circuit

ROCHO high frequency induction brazing system using all solid-state IGBT frequency conversion control technology and IGBT drive circuit, which significantly improves the resonance wave form, reduces switching losses, increases the stability of high frequency tracking, to provide more stable and better heating uniformity.

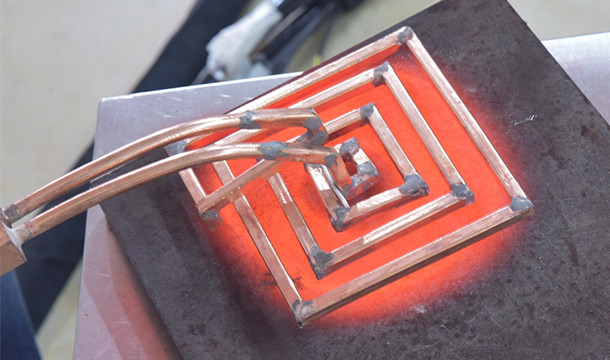

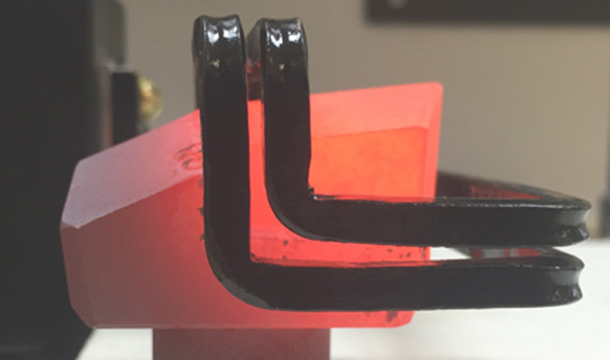

The Principle Of Induction Brazing

The traditional brazing is a welding process in which the brazing metal is melted by flame and penetrated into the gaps between work pieces to make them adhere firmly. Induction brazing is to use the skin effect of induction heating to heat the surface layer of two metal parts and melt the brazing metal to achieve the purpose of welding.

The whole brazing process does not require deep heating on the metal work piece, with quick brazing speed, high brazing efficiency, large brazing quantity, and is suitable for factories with large-scale production.

All-Round Protection Function

High frequency induction heater has multiple protection functions including over-current protection, water shortage protection, over-heat protection, over-voltage protection, short-circuit protection, phase failure/loss protection and other alarm functions. It will automatically alarm in case of faults, greatly improving the reliability of the equipment.

Flexible Operating Modes
The high frequency induction brazing system has two operating modes: constant current and constant power. These two mode can be choose according to the heating state of the work piece, so as to optimize the brazing process, achieve rapid heating, and maximize the performance of the equipment.

Adjustable Power Parameter
The high-frequency induction brazing system has five key parameter, including heating power, thermal power, heating time, thermal time, and cooling time. These parameter can be adjusted independently, so the high frequency machine is suitable for occasions where the heating temperature is controlled more accurately.

High Brazing Quality
Induction brazing can perform local heating to realize small brazing deformation, less oxidation and decarbonization, smooth, clean and beautiful joints, uniform heating and full weld seam, and avoid solder missing or skips.

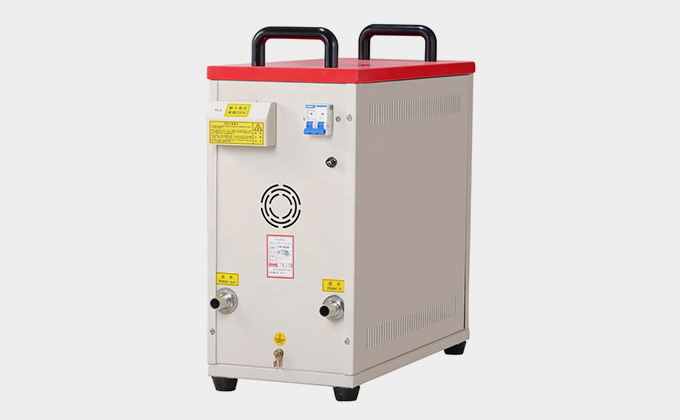

Compact Design
The equipment is small in size, light in weight, convenient to move, simple to operate, safe and reliable, and free from high voltage danger.

Simple Install

The power and time of heating and heat preservation processes can be adjusted to simplify the operation of workers. The induction brazing system is easy for installation and can be used only by connecting power supply and water.

Applications:

Induction brazing is the cleanest and most environmentally friendly welding method in the world. ROCHO INDUCTION provide the modular design and solution to adapt to fit your parts processes, such as:
1. Brazing of various hardware tools: diamond tools, alloy saw blades, carbide turning tools;
2. Brazing of cemented carbide tools: such as turning tools, milling cutters, twist drills, pliers, etc.;
3. Brazing of diamond blades, such as diamond saw blades, abrasive tools, and saw tooth;
4. Brazing of drill bits used for prospecting, such as flat drill bits and claw drill bits;

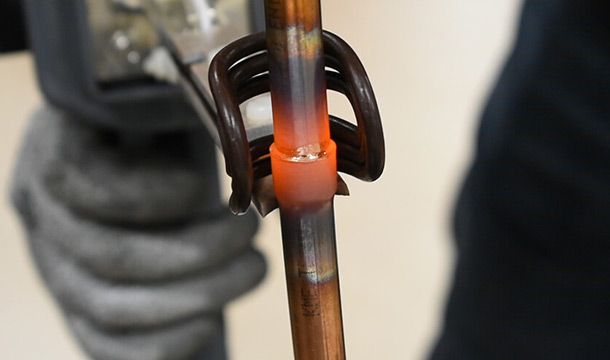

5. Compound brazing of metal materials such as brass, copper, stainless steel pot bottom.

Technical Specification:

Power output	15kW-50kW
Frequency range	30-100kHz
Power supply	Single phase 220 V or three phase 380V 50/60Hz,
Voltage Range	340V-480V
Output module	IGBT
Max duty cycle	100%
Current output	200-2400A
Weight	36KG/35KG
Dimension	600255540mm, 500255420mm
Protection function	Over voltage, over current, short circuit, water shortage, phase loss, water temperature alarm, etc.
Water temperature	The device alarms when the water temperature exceeds 40 °C.
Cooling way	Closed circuit cooling tower, air chiller, water chiller (Available)
Upgraded	PLC control, infrared thermometer, (Available)
Application	Brazing of carbide, saw blade, brass, copper, stainless steel
Warranty	One year technical support and service

ROCHO technical team can customize the induction heating power supply for special purposes according to customer requirements, and design capacitors, frequencies and induction coils according to the metal workpiece to be heated and heating requirements to achieve the best heating effect.
When you need to consult or order machine, please provide the following information:
(1) the local industrial voltage;
(2) the name and material of the product to be processed;
(3) the required process: heating, brazing, hardening, melting or annealing;
(4) the size of the product to be processed, such as diameter and length and if drawings can be provided.
